Plastic linear gear rack

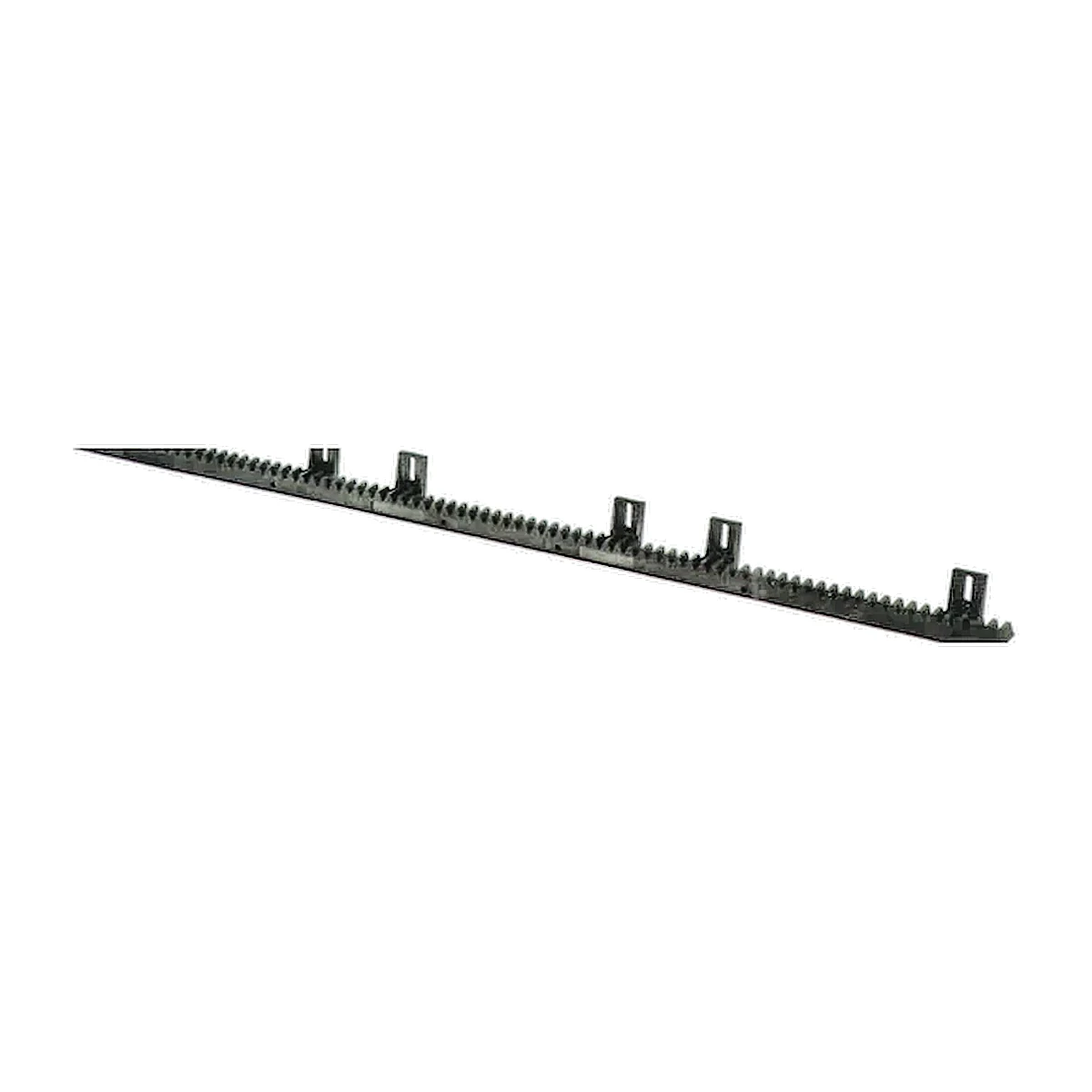

Plastic gear racks convert pinion rotation into linear travel. Tooth geometry must be coordinated with rack straightness, mounting support and any joints between rack lengths.

For molded rack segments, the gate and ejection concept should avoid distorting the tooth line or mounting face. For machined racks, stock straightness and fixture release matter. In both cases, the machine should provide a consistent backing datum instead of asking the rack to bridge large unsupported spans.

Geometry and interface inputs for Plastic Gear Racks

• ماڈیول/DP اور دباؤ کا زاویہ
• Rack length and cross-section
• Mounting-hole or backing-strip geometry
• Mating pinion and center height
• Travel, load and backlash requirement

جیومیٹری حوالہ: Straight rack / rack segment

پیداوار کے راستے کا انتخاب

Injection molding suits repeat modular lengths and integrated mounting features; machining can support long, low-volume or material-specific racks. The installation method should be selected with the process.

پیک شدہ عمل کا حوالہ: Machined or molded by geometry and quantity

مواد کی سمت: POM or nylon family by application

ایپلیکیشن مخصوص ڈیزائن کا جائزہ

Bow, poor backing support or joint discontinuity can change backlash along the travel.

عام استعمال: Industrial automation, sliding mechanisms, adjustment systems and material handling. The final material and tolerance plan should be checked against the load path, mating components and environment in that assembly.

پہلا نمونہ اور معائنہ فوکس

Measure pitch/geometry together with straightness and mounting datums. Validate the rack with the intended pinion across the required stroke where positioning is important.

کوٹیشن کا فیصلہ: Module, pressure angle, length, mounting pattern, rack section, pinion match, pitch-line height and environmental conditions drive selection.

What to send for a Plastic Gear Racks quotation

تازہ ترین ڈرائنگ یا CAD ماڈل کو پیداوار کی مقدار اور اطلاق کی شرائط کے ساتھ بھیجیں جو فٹ، پہننے یا جہتی استحکام کو متاثر کرتی ہیں۔ اگر حصہ کسی موجودہ جزو کی جگہ لے لیتا ہے، تو ان خصوصیات کی نشاندہی کریں جن کا تبادلہ ہونا ضروری ہے اور کوئی بھی معلوم فیلڈ مسئلہ جسے نیا حصہ حل کرنے کا ارادہ رکھتا ہے۔

• جب دستیاب ہو تو کنٹرول شدہ ڈرائنگ ریویژن اور 3D ماڈل
• ملاوٹ کا حصہ یا ٹرانسمیشن جیومیٹری
• مواد کی ضرورت یا خدمت کا ماحول
• نمونہ کی مقدار، پیداوار بیچ اور متوقع سالانہ طلب
• اہم طول و عرض اور فعال قبولیت کا طریقہ

Engineering specification to freeze before manufacture

A production drawing should convert the application into measurable inputs. The table below is the minimum review set for this product family; add any assembly-specific datum, finish or acceptance requirement that changes function.

Failure modes to prevent during design review

Common risks for this geometry include pitch-line misalignment; local rack bow or poor support; position error from environmental dimensional change. These are best addressed before the first sample by reviewing the complete mating interface, not by tightening every drawing tolerance.

Use tolerances selectively. Dimensions that establish the tooth mesh, chain engagement, shaft fit or assembly datum deserve explicit measurement methods; non-critical molded surfaces can often use a more practical general tolerance.

First-article and production acceptance

Agree the inspection condition, datums and measuring method before sampling. The first-article report should cover the drawing CTQs and then be paired with a functional check in the real assembly or a representative fixture. For gears and sprockets, that can include mesh or chain engagement, runout and bore relationship; for custom molded parts it can include fit, fastening and loaded features.

Production control should follow the same CTQs rather than replacing them with a long list of easy-to-measure cosmetic dimensions. If a bore, tooth, insert or mounting surface is secondary-machined, make clear which operation establishes the final datum.
