Custom Plastic Part Engineering

Custom engineering begins with the interface

For a non-standard part, the fastest route to a meaningful review is to show how the component fits into the assembly. A standalone image rarely captures the information needed to judge draft, wall thickness, shaft fits, gear mesh, inserts or inspection access.

Share the drawing, mating geometry and application conditions together. If a legacy part is being replaced, photographs and a physical sample can be useful supplements to the controlled dimensions.

Engineering review priorities

Reverse engineering and replacement work

When the only starting point is an existing part, measured geometry should be separated into functional interfaces, likely manufacturing variation and wear. Copying every measured feature from a used sample can reproduce damage or distortion. A better replacement drawing identifies the shaft fits, mounting datums, gear mesh or sliding surfaces that must remain interchangeable.

If the previous part failed, describe the failure location and duty at the time. Cracking around an insert, wear on a tooth flank and dimensional drift in a hot housing point to different design questions.

Design changes should have a reason

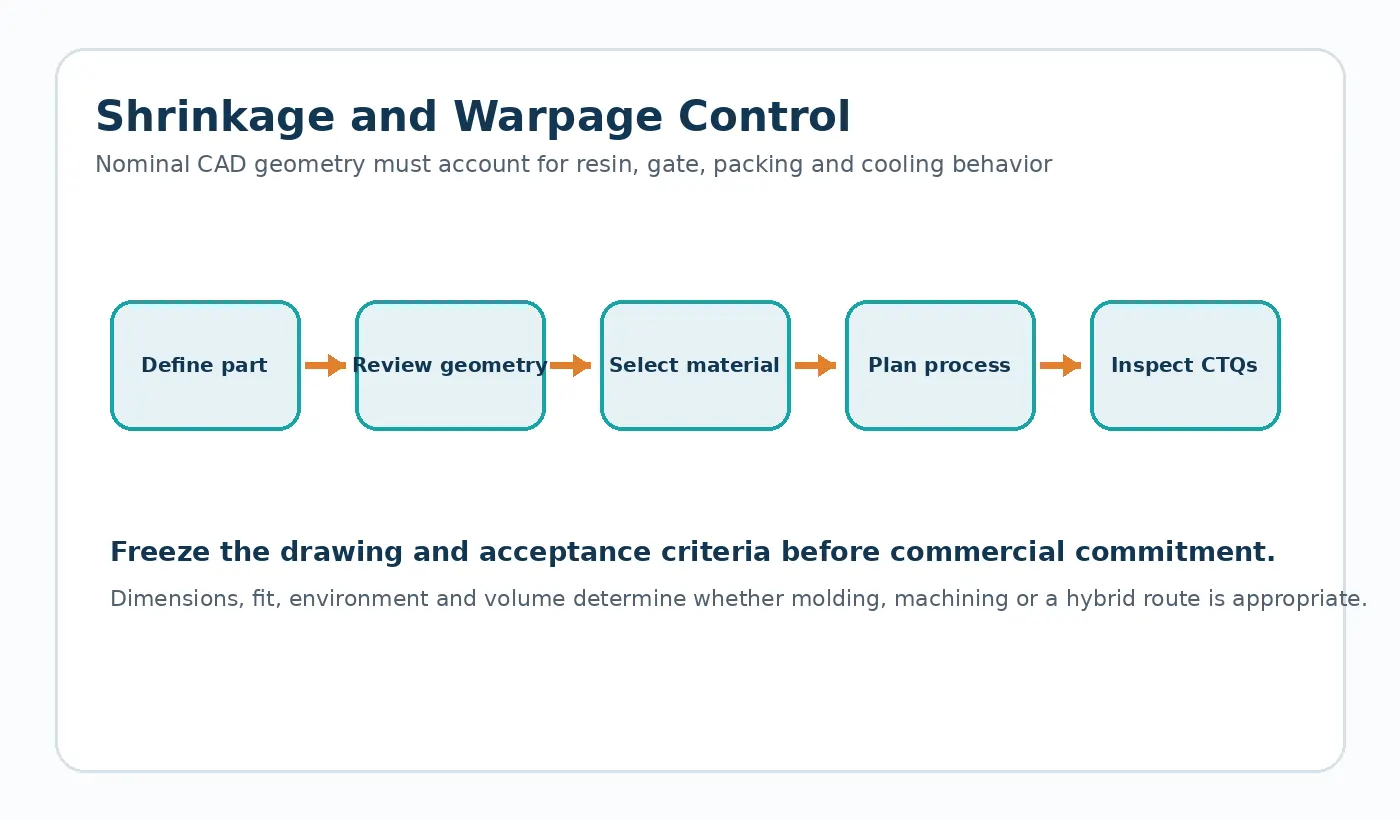

DFM feedback is most useful when each proposed geometry change is tied to tooling, material flow, ejection, inspection or service performance. A radius added for molding should not interfere with a mating metal part; a thicker boss should not create an unnecessary mass opposite a cosmetic surface.

Keep a short decision record beside the drawing revision. This makes later supplier changes or reorders easier because the reasoning behind important interfaces does not disappear with the original email thread.

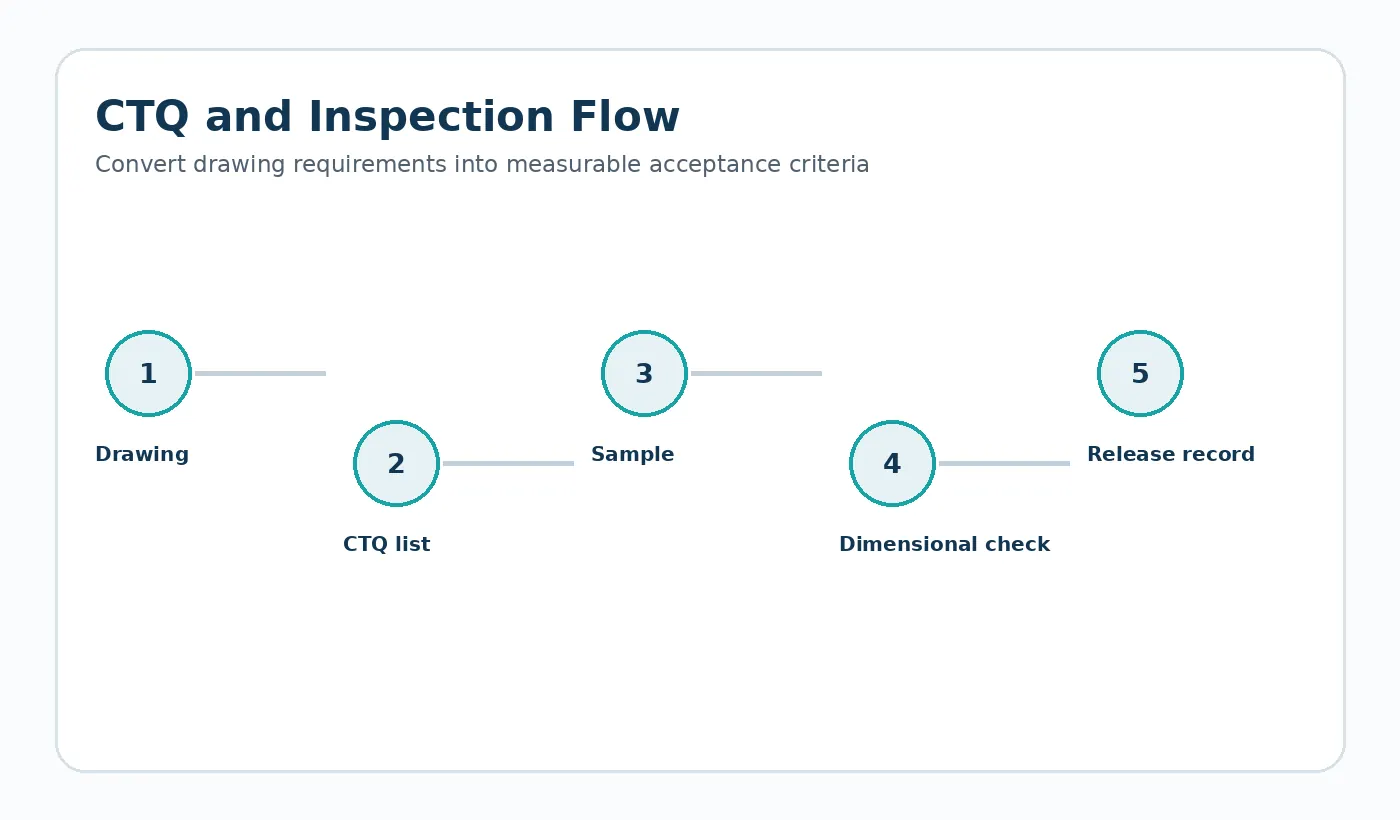

From prototype to production
